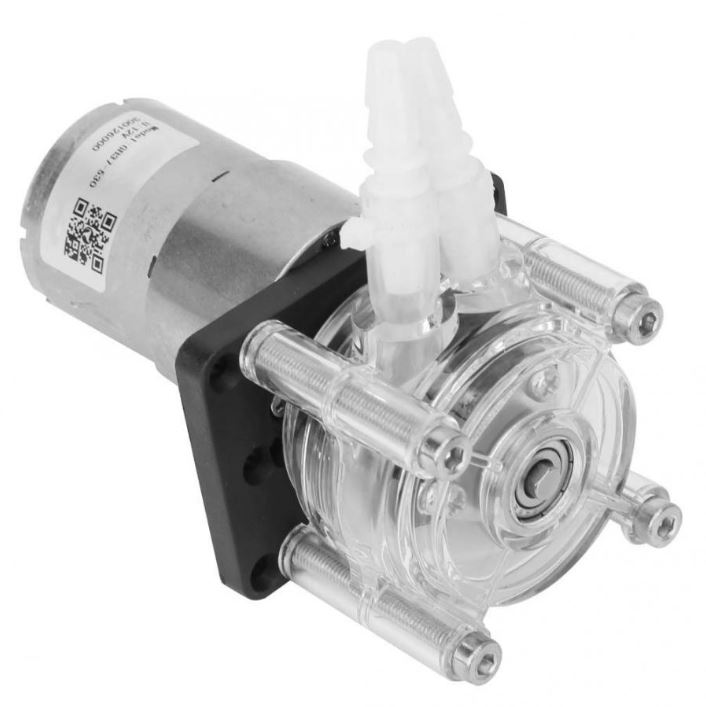

Large Flow Peristaltic Pump Dosing Vacuum Strong Suction Pump DC12v Motor

Large Flow Peristaltic Pump Dosing Vacuum Strong Suction Pump + DC12v Motor

Features:

• Pump cover: screw by hand, remove quickly for easy tube replacement
• Equipped with low noise dc motor, quiet and has long life
• Guide roll take adjustment action to facilitate the replacement of the pipe, to avoid the lack of experience to clamp and damage the pipe
• Roller bearing adopts wheel frame, quiet, long service life
• Stainless steel screws, anti - rust and corrosion

Specification:

Motor: 12V dc motor

Dc motor current: 0.5-1.4A

Working environment: 0-40, relative humidity 80%

Medium flow: the flow of the pump depends on the positive and negative connection

Flow range: 0-400ml/min

Tube: inner diameter * outer diameter (6.4mm * 9.6mm)

Wall thickness: 1.6 mm

Maximum diameter: 9.6mm

Tube material: transparent silicone tube

Shell material: PC

Roller: POM

Roller type: ball bearing

Weight: 274 g / 9.7 oz(approx.)

Package list:
1 x  Peristaltic Pump

1 x wrench
