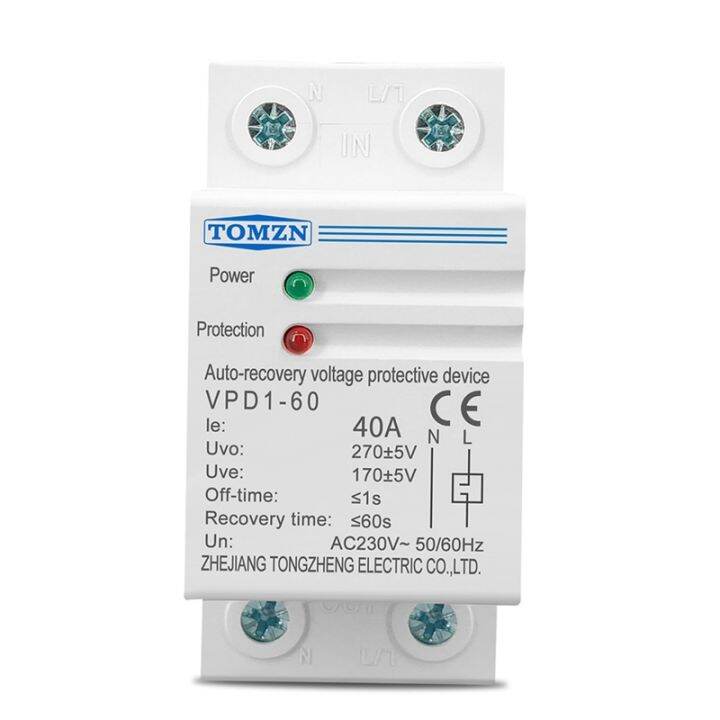

Under Over Voltage Relay 40A 230V (2LED)

Main Technical Speacification:

1. Rated AC voltage 230V±10% and frequency 50Hz/60Hz

2. Passing Max Current: 40A

3. Max. Loading power: 8.8KVA

4. Over-voltage action cut-off value: >270VAC+/-5V

5. Normal-voltage value: 175-270VAC

6. Under-voltage action cut-off value: <170VAC+/-5V

7. Over voltage and under voltage cut-off:< 1s

8. Electricity transmitting delay after cut-off: <60s

9. Self power consumption<2W

10. Electric machinery life=100000 times

11. Dimension: 35L*70W*77Hmm

12. Installing: 35mm Din rail
